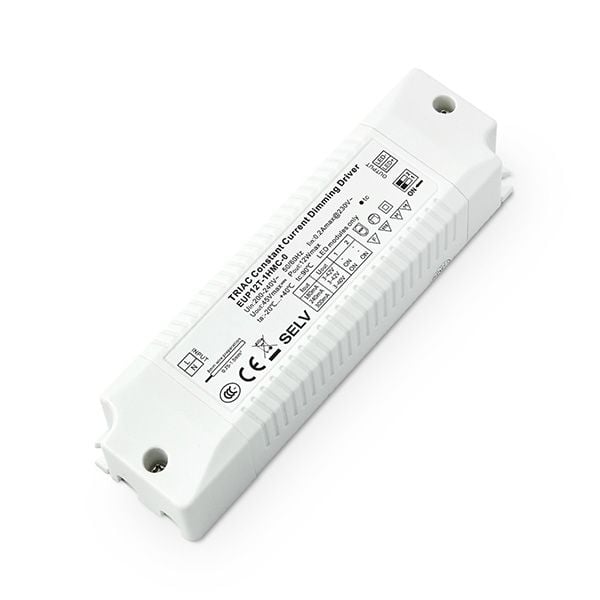

12W 180/240/300mA*1ch CC Triac Driver EUP12T-1HMC-0

SKU: Chưa rõ

Mô tả

Short Description:

Item No.:EUP12T-1HMC-0
Input Voltage:200-240
Output Current:180/240/300mA*1CH
Output Voltage:3-42
Output Power:12
Dim Mode:Triac/ELV
G.W.:130
Size:150 *43*29

12W 180/240/300mA Constant Current Triac Driver EUP12T-1HMC-0

Feature:

1. Single channel output, output current level selectable by DIP S.W.
2. Support Leading edge (TRIAC) and Trailing edge (ELV) Dimmer
3. Dimming range from 40VAC to 240VAC
4. Class 2 power supply. Full protective plastic housing
5. Dimming effect smooth, no flicker
6. Protections: Short circuit, over load, over temperature
7. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on

Technical Parameter

Model		EUP12T-1HMC-0
Output	Current	180mA	240mA	300mA
	Voltage	9-42VDC	9-42VDC	9-40VDC
	Rated power	7.56W	10.08W	12W
	Current accuracy	±5%
	No load output voltage	48VDC
	Output LF current ripple(< 120 Hz)	＜3%
	Channels	1
Input	Voltage	200VAC – 240VAC
	Frequency	50/60Hz
	Current	0.2Amax@230VAC
	Dimming voltage range	40VAC – 240VAC
	Power factor	＞0.5@230VAC,full load
	Efficiency	80%@230VAC,full load
	Inrush current	Cold start,15A(t_width=22us measured at 50% I_peak) @230VAC
Protection	Short circuit	Close output，recovers automatically after fault removed
	Over load	When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced.
	Over temperature	Shut down the output, recovers automatically when temp. back to normal.
Function	Dimming	Triac/ELV
Others	Dimension	150 4329 mm（LWH）
	G.W	130g
	Working temp.	-20℃ ~ 50℃
	Relative humidity	20~90% RH
