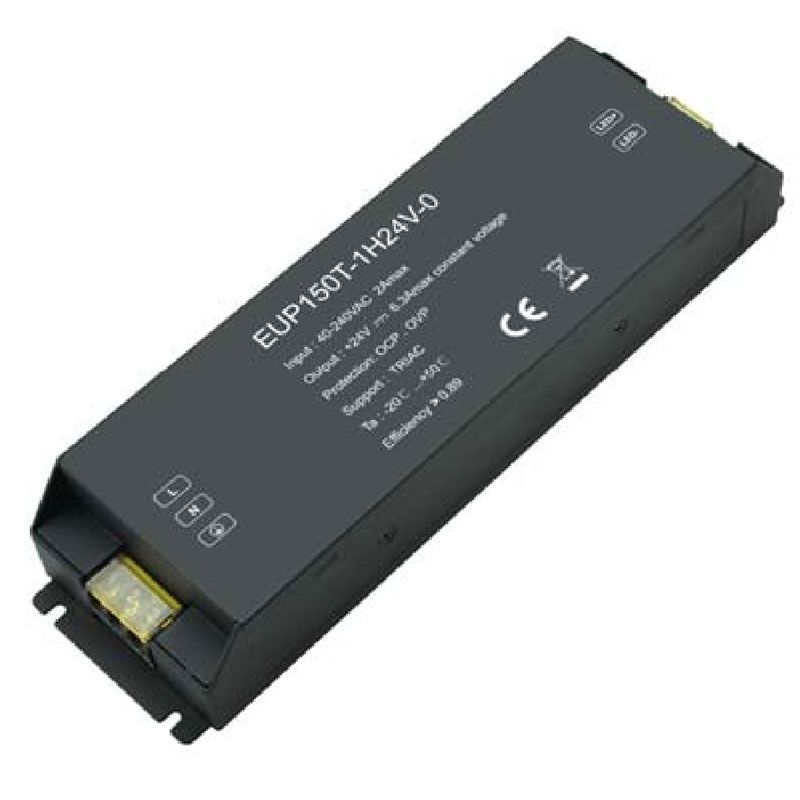

150W 24VDC CV Triac Driver EUP150T-1H24V-0
SKU: Chưa rõ Hết hàngMô tả
Feature
1. Single-channel constant voltage output,6.3A Max.
2. Support Leading edge (Triac) and Trailing edge (ELV) Dimmer
3. Dimming range from 40VAC to 240V AC.
4. Dimming effect smooth, no flicker
5. High efficiency: up to 89%.
6. Over power protection; Over voltage protection; Short circuit protection
7. Suitable for indoor LED lighting application
Technical Parameters
Model EUP150T-1H24V-0 Output Channels 1 Voltage 24VDC Current 6.3A Power 151.2W Voltage Accuracy ±3% R & N (Max) 200mVp-p Input Voltage 200VAC – 240VAC Frequency 50/60Hz Dimming Voltage Range 40-240VAC Efficiency(Typ) 89% Current 2A@230VAC Inrush Current 45A@230VAC Protection Short Circuit Close the output, restart to recover since fault condition is removed for 10s Over Voltage Hiccup, recovers after fault condition is removed Over Power Limit the power to 110%-150% of rated output power Functio Dimming Mode Triac/ELV Others Dimension 260*78.3*45 mm（L*W*H） Packing Size 367*292*289mm,20pcs/18kg/carton G.W. 842g Working temp. -20℃ ~ 50℃ Relative humidity 20~90% RH
